Annular Fill, Squeeze Jobs & Multi-Stage Cement in Wellbore Genie

Full Annular Fill Control

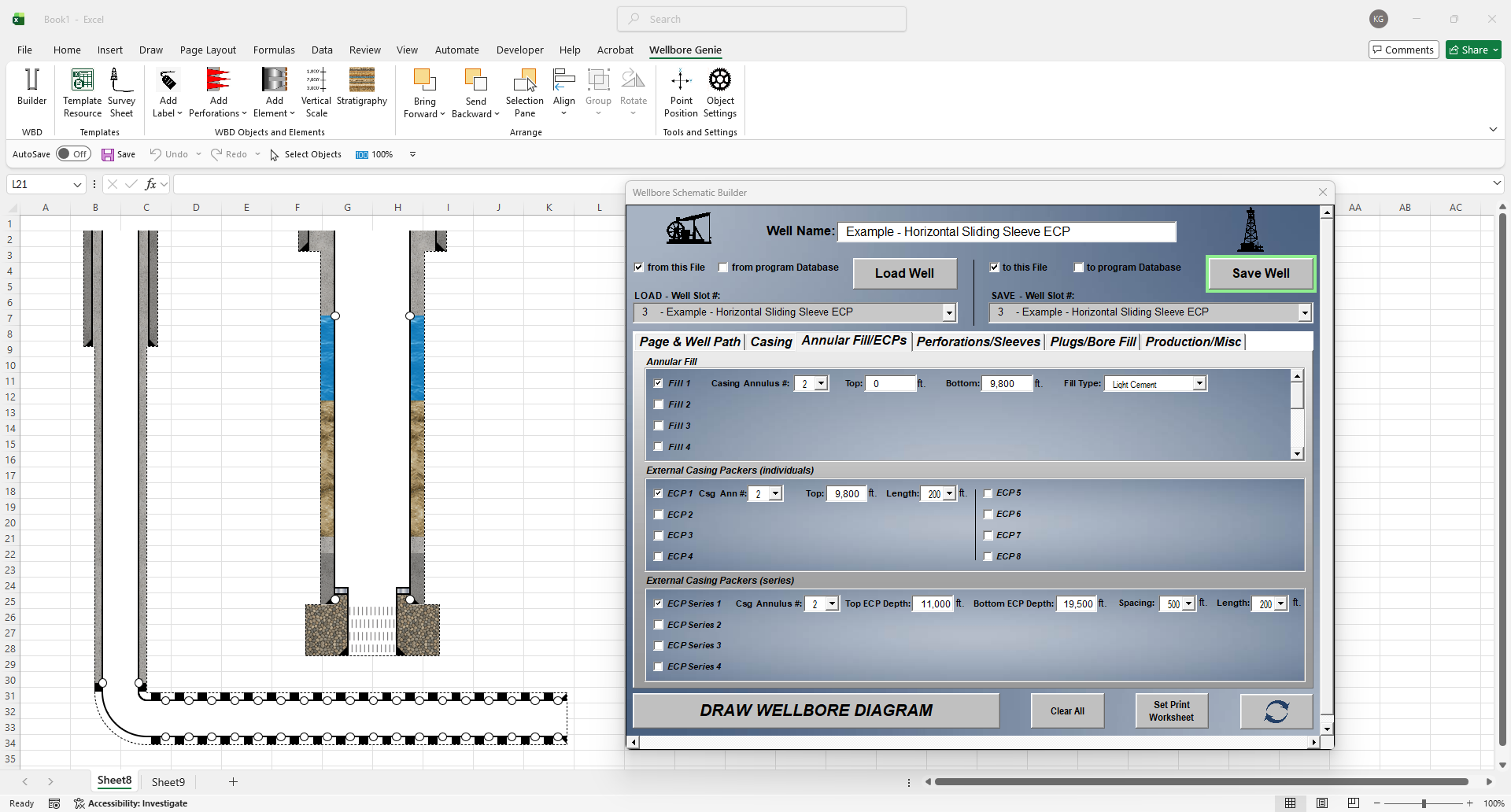

Wellbore Genie gives you complete control over what fills every annular space in your wellbore schematic. Whether you’re documenting a primary cement job, a remedial squeeze, or a multi-stage completion, you can accurately represent what’s in every annular interval.

Annular Operations & Fill Options

Wellbore Genie covers the full range of standard annular operations and fill scenarios — including but not limited to:

•      Squeeze jobs — Show remedial cement placement in specific annular intervals

•      Gravel packs — Accurately represent gravel pack completions in the annulus

•      Secondary cement stages — Visualize stage tool placements and cement tops from multi-stage jobs

•      External Casing Packers (ECPs) — Include ECPs as part of your annular fill visualization

•      Annular fluids — Fill any annular interval from an extensive inventory of fluid and material textures including cement, mud, water, oil, gas, steam, and a wide variety of fluid mixtures — if it’s in the well, there’s a texture for it

Every fill texture is visually distinct and professionally rendered, making it easy for anyone reading the schematic to immediately understand what’s in each annular interval at a glance.
