Downhole Equipment, Drill String & Object Library in Wellbore Genie

Every Downhole Component You Need, Ready to Place

A wellbore schematic isn’t complete until every significant downhole component is represented. Wellbore Genie includes a comprehensive library of production equipment, drill string components, and miscellaneous downhole objects — covering the full life cycle of a well from drilling through production to abandonment.

Production Equipment

Wellbore Genie’s production equipment library includes all the essential components for representing producing wells:

•      Tubing strings

•      Downhole pumps (including rod pumps)

•      Sucker rods

•      Rod anchors

•      Packers

Whether you’re diagramming an artificial lift system, a natural flow completion, or a workover in progress, the components you need are ready to place.

Drill String Components

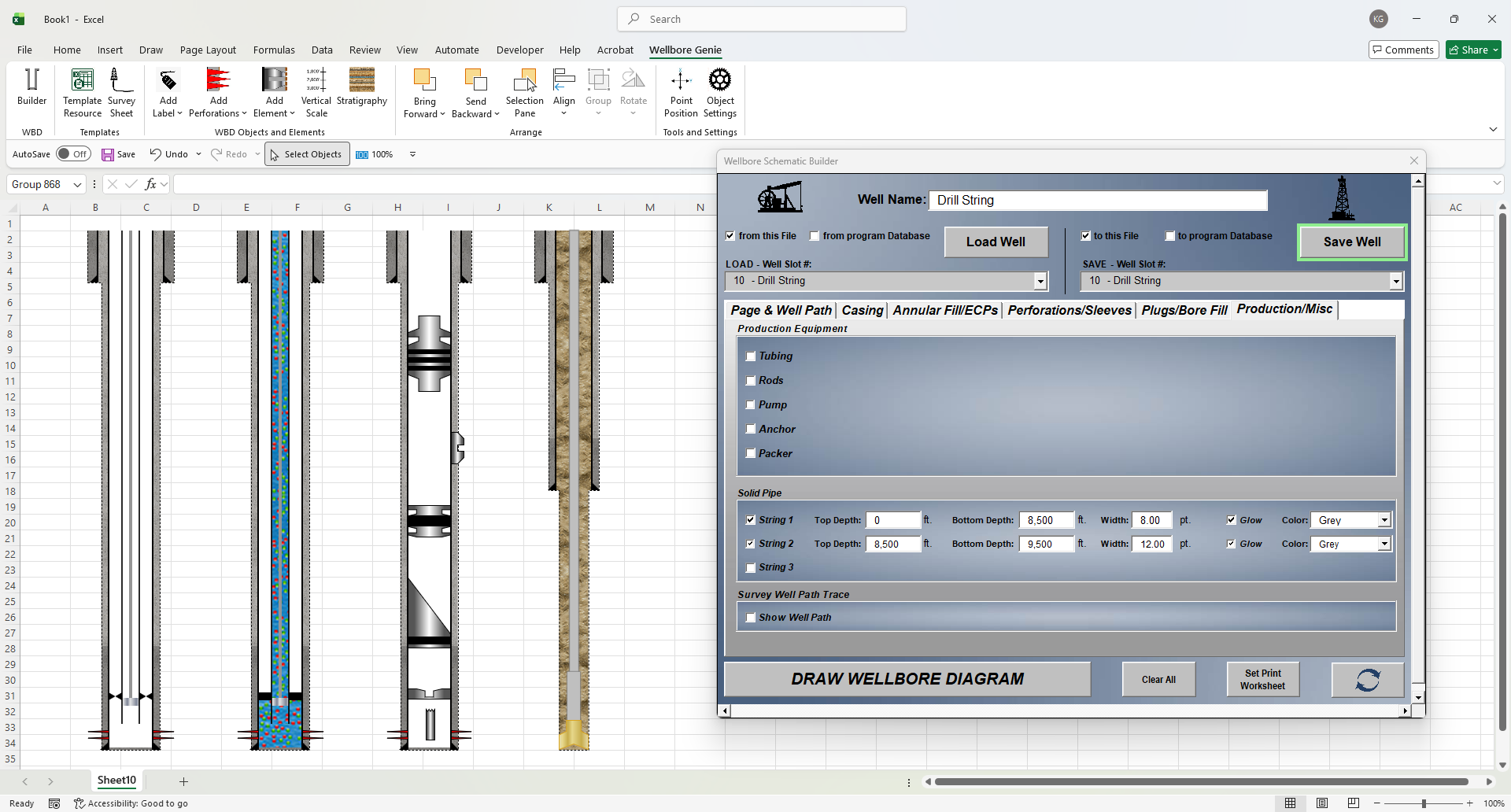

Wellbore Genie includes a drill string feature that allows you to draw a drill string complete with drill pipe, tapered drill pipe, a bottom hole assembly, and a drill bit — giving you everything you need to represent a well in the drilling phase.

Miscellaneous Downhole Objects

Wellbore Genie also includes a library of miscellaneous downhole objects for specialized scenarios:

•      Stage tools

•      Cement retainers

•      Bridge plugs

•      Packers

•      Fish

•      Whipstocks

•      Drill bits

•      Miscellaneous perforation elements

Whether you’re documenting a straightforward completion or a complex remedial operation with multiple downhole tools, Wellbore Genie has the elements you need to build an accurate, professional schematic.
