Well Profile Design & Directional Survey Processing in Wellbore Genie

Every Well Type. Every Survey Method. One Program.

Not every well is vertical. Wellbore Genie is built to handle the full spectrum of well geometries — from simple vertical producers to complex directional wells with actual drilled survey data.

Built-In Standard Well Profiles

For quick schematic work, Wellbore Genie includes standard built-in well profile designs including vertical, horizontal, slant, S-curve, and double build configurations. Select your profile type, enter your well depth data — kick off points, curve build rates, slant information, and related parameters — and Wellbore Genie builds the path from there.

Build a Custom Well Path From Scratch

For wells that don’t fit a standard template, Wellbore Genie gives you the full directional capabilities to build a complete well path from just a few entries — much like the professional directional software packages used across the industry. Define your survey stations, inclinations, and azimuths to match any planned or actual well trajectory, and Wellbore Genie does the rest. These are serious directional tools built into a wellbore schematic program.

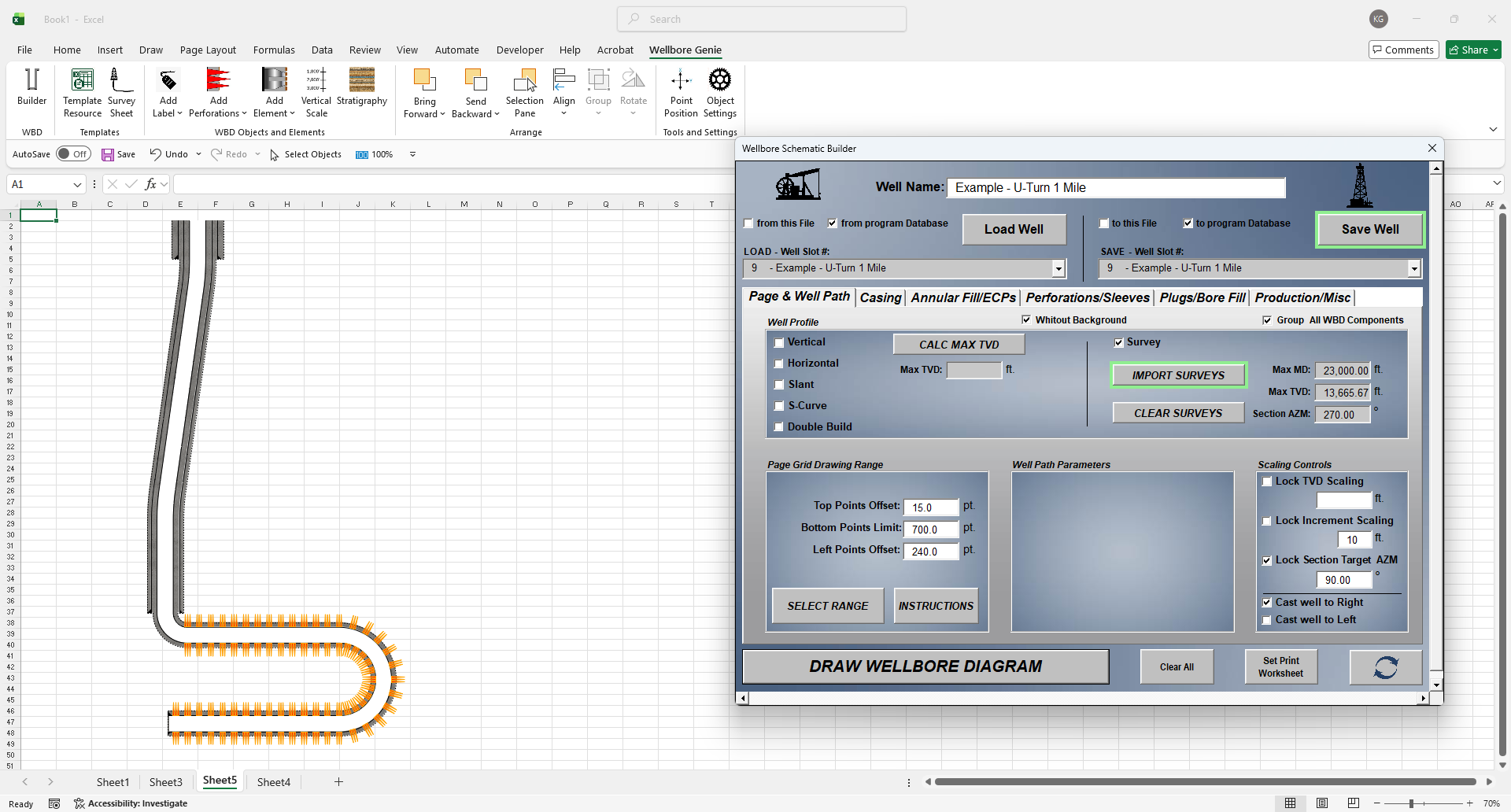

Import Actual Directional Survey Data

This is where Wellbore Genie truly separates itself from competing well schematic programs. Wellbore Genie allows you to import actual directional survey data from Excel or CSV files — and the process is remarkably fast. Simply select the survey data from the cells in your Excel or CSV file and import — done in less than 7 seconds, as demonstrated in the video tutorials on our home page.

Competitors who offer survey importing typically require a lengthy, multi-step import process. With Wellbore Genie, it’s done in seconds. If you’ve ever spent 20 minutes wrestling with a survey import in another program, you’ll immediately appreciate how different this experience is.

3D Well Path Processing & 2D Rotation

Wellbore Genie processes directional well paths in full 3D, then gives you the ability to view and display the well in 2D from any angle by rotating it around the vertical axis. This means your schematic always shows the most meaningful view of the well’s actual geometry — a critical feature for horizontal wells, multi-lateral wells, and any well where the 2D representation matters for accurate communication.

This level of directional capability is unique to Wellbore Genie among wellbore schematic programs in its class. High-end directional processing tools are almost never built into competing wellbore diagram software — and when they are, they certainly don’t come at Wellbore Genie’s price point. This feature alone takes Wellbore Genie to an entirely different level from anything else on the market at an affordable price.
